Sumo Logic + Email Dashboard

I am feeding my syslog files into a Sumo Logic collector which includes the mail logs from Postfix (and some Dovecot and Fortigate mentions).

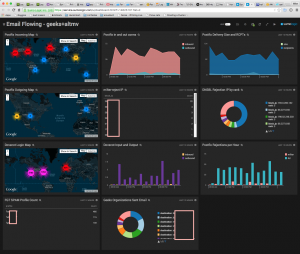

There is a lot going on in this dashboard. (and I have a lot of tabs open in my browser - don’t hate!)

Dashboards in Sumo Logic are an easy and quick way to visualize data you have information for. In earlier posts I showed data from a Fortigate firewall to display bandwidth hogs and performance graphs.

But I wanted to see how my mail server(s) are doing.

So I built a sample dashboard to do just that.

Row	Left	Center	Right
1	GeoIP of incoming connections	Postfix inbound/outbound	Postfix delivery size and # recipients
2	GeoIP of outgoing connections	milter rejection hosts	DNSBL rejection hosts
3	GeoIP of Dovecot connections	Dovecot size of in/out traffic	Postfix rejections per hour
4	Fortigate Spam Profiles	Top 10 Postfix local destinations	—

Included below are the relevant searches needed to build a dashboard as pictured above.

GeoIP of incoming connections:

_index=unix_logs _sourceName="mail system"
  ((postfix/postscreen AND (DISCONNECT)) OR (SecureMail))
  | parse regex "(?P<client_ip>\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})"
  | lookup latitude, longitude, country_code, country_name, region, city, postal_code, area_code, metro_code from geo://location on ip = client_ip
  | count by latitude, longitude, country_code, country_name, region, city, postal_code, area_code, metro_code
  | sort _count

Postfix inbound/outbound:

_index=unix_logs _sourceName="mail system"
  AND NOT (127.0.0.1 OR 192.168.110.218)
  AND (postfix/smtp OR postfix/smtpd)
  | parse regex ".*: connect from .*\[(?P<src_ip>\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})" nodrop
  | parse regex ":.*: to=.*\[(?P<dst_ip>\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}).*=sent"
  | split src_ip delim='.' extract 1 as src_num_ip1
  | split dst_ip delim='.' extract 1 as dst_num_ip1
  | if ((src_num_ip1 >= "1"), 1, 0) as inbound
  | if ((dst_num_ip1 >= "1"), 1, 0) as outbound
  | timeslice 60m
  | sum(inbound) as inbound, sum(outbound) as outbound by _timeslice

Postfix delivery size and # recipients:

_index=unix_logs _sourceName="mail system" postfix/qmgr
  | parse "size=*, nrcpt=* " as size, rcpt
  | timeslice 60m
  | (size/1000000) as mbytes_in
  | sum(mbytes_in) as size, sum(rcpt) as recipients by _timeslice

GeoIP of outgoing connections:

_index=unix_logs _sourceName="mail system"
  postfix/smtp AND !(127.0.0.1 OR clamsmtpd OR "TLS connection established")
  AND "250 "
  | parse regex "relay=.*\[(?P<client_ip>\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})\]:"
  | lookup latitude, longitude, country_code, country_name, region, city, postal_code, area_code, metro_code from geo://location on ip = client_ip
  | count by latitude, longitude, country_code, country_name, region, city, postal_code, area_code, metro_code
  | sort _count

milter rejection hosts:

_index=unix_logs _sourceName="mail system" (postfix/cleanup AND " milter-reject: ")
  | parse regex "\[(?P<block_ip>\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})"
  | count as count by block_ip
  | order by count
  | limit 10

DNSBL rejection hosts:

_index=unix_logs _sourceName="mail system" (postfix/postscreen AND " DNSBL ")
  | parse "rank * " as rank nodrop
  | parse regex "\[(?P<block_ip>\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})"
  | count as count by block_ip, rank
  | order by count
  | limit 20

GeoIP of Dovecot connections:

_index=unix_logs _sourceName="mail system"
  dovecot: AND (imap-login: OR pop3-login)
  | parse regex "rip=(?P<client_ip>\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}),"
  | lookup latitude, longitude, country_code, country_name, region, city, postal_code, area_code, metro_code from geo://location on ip = client_ip
  | count by latitude, longitude, country_code, country_name, region, city, postal_code, area_code, metro_code
  | sort _count

Dovecot size of in/out traffic:

_index=unix_logs _sourceName="mail system"
  "dovecot:" !"Debug:" "Connection closed "
  | parse "imap(*)" as username nodrop
  | keyvalue regex "=(\d+)" keys "in", "out" as input, output
  | timeslice 60m
  | (input/1000000) as mbytes_in
  | (output/1000000) as mbytes_out
  | sum(mbytes_in) as inbound, sum(mbytes_out) as outbound by _timeslice

Postfix rejections per hour:

_index=unix_logs _sourceName="mail system" " 5.7.1 "
  | parse regex "milter-reject: END-OF-MESSAGE from .*\[(?P<milter_src_ip>\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})" nodrop
  | parse regex "NOQUEUE: reject: .*from .*\[(?P<rbl_src_ip>\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3})"
  | split milter_src_ip delim='.' extract 1 as milter_num_ip1
  | split rbl_src_ip delim='.' extract 1 as rbl_num_ip1
  | if ((milter_num_ip1 >= "1"), 1, 0) as milter
  | if ((rbl_num_ip1 >= "1"), 1, 0) as rbl
  | timeslice 60m
  | sum(milter) as milter, sum(rbl) as rbl by _timeslice

Fortigate Spam Profiles:

_index=security_logs _sourceCategory=fw_security "service=SMTP"
  | parse "profile=* action=* " as profile, action
  | count as count profile
  | order by count

Top 10 Postfix local destinations:

_index=unix_logs _sourceName="mail system"
  !(127.0.0.1 OR clamsmtpd:) "status=sent"
  | parse " to=<*>, " as orig_destination
  | toLowerCase(orig_destination) as destination
  | timeslice 60m
  | count as count destination
  | order by count
